Your braking system quality is not a detail when you’re riding an electric bike safely across the varied terrain of the UK. From the congested city streets of London to the steep country lanes of Surrey, the braking system must perform consistently in all conditions. The XOD hydraulic brake in the UK has quickly become the preferred stopping solution for serious E-bike riders across Britain. And we fit it across our range because we know that rider safety starts and ends with reliable, powerful and consistent braking performance. One that doesn’t fall apart in the rain, doesn’t require constant adjustment of cables, and doesn’t leave your hands exhausted after a long descent.
The XOD hydraulic brakes in the UK fitted across the E-Movement range are purpose built for the demands of electric cycling, not adapted from conventional bicycle parts. E-bikes are heavier, faster, and carry more momentum than regular bicycles. The braking system that stops them has to be built to that reality. This guide will explain what the XOD system is, how it works, what it’s made of and why it beats all other mechanical options available to UK E-bike riders every time.
What Is the XOD Hydraulic Brake in the UK and Why Does It Outperform Mechanical Systems
The XOD hydraulic brake in the UK is a hydraulic disc brake system for electric bicycles only. The XOD system uses hydraulic fluid, contained in a fully sealed hose, to transfer pressure, unlike mechanical disc brakes that use a metal cable to transfer the braking force from the lever to the caliper. A cable that stretches over time, corrodes in damp British weather and needs regular adjustment. The result is an instant, accurate and repeatable brake reaction that mechanical systems simply cannot match.
With the XOD system on an E-Movement E-bike, squeezing the brake lever pushes hydraulic fluid down a sealed hose into the caliper. The caliper then pushes the brake pads against the rotor. Slowing the wheel with a smooth, progressive and proportional response. The fluid cannot be compressed or stretched, so the power transfer from lever to pad is instantaneous every time. In British autumn and winter, when rain, mud and cold are a constant factor, this reliability is not a luxury. It is a requirement.
The Full Component Breakdown of the XOD System in the UK

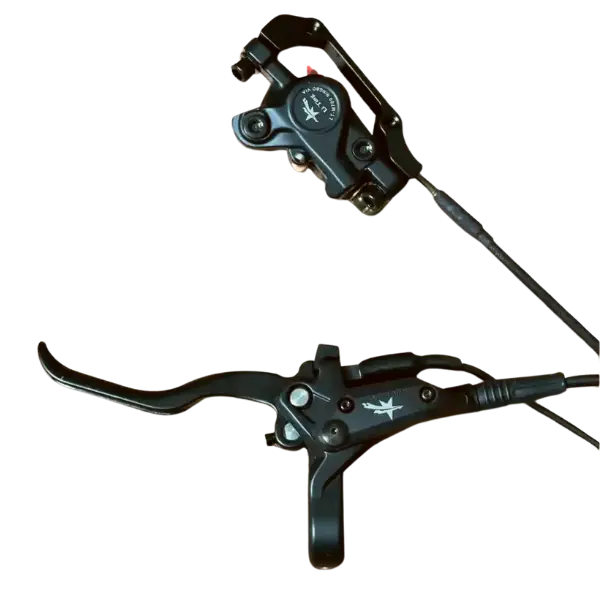

To understand what makes XOD brakes in the UK so effective, it starts with understanding the individual components that make up the complete system. Every XOD hydraulic brake in the UK disc set from E-Movement comes with the following precision engineered parts that work together to provide reliable stopping power on every ride.
Brake Lever: This is the rider’s primary point of contact with the system. On every hydraulic disc brake E-bike UK application the lever reservoir holds the hydraulic fluid and initiates pressure when squeezed. The XOD lever is designed to require minimal hand force, greatly reducing the fatigue on longer UK commutes or trail rides.
Sealed Hydraulic Hose: This hose carries fluid from the lever to the caliper. The XOD hose is fully sealed so no fluid leakage, no contamination by external moisture, and no performance degradation due to exposure to the British weather conditions. Front housing length is 850mm and rear is 1,550mm, perfect for the E-Movement range.
Caliper : The caliper is mounted directly at the wheel and applies the hydraulic pressure to the rotor in the form of mechanical clamping force. The XOD caliper is made from aluminium alloy, selected for its strength, low weight (front: 0.426kg; rear: 0.5kg) and great heat dissipation over long periods of braking on UK descents.
Brake Pads: Friction against the rotor is created by heat resistant pads. The XOD break system is self-adjusting, so as the pads wear slowly over time, the system compensates automatically and there’s no need to tighten cables manually, which is a huge practical advantage for UK riders who don’t want to be visiting a service centre after every few hundred miles.
Rotor: 44mm bore. Works with 140mm or 160mm front rotors and 160mm or 180mm rear rotors. The rotor turns along with the wheel and is the surface the brake pads apply the stopping friction to.
Motor Cut-Off Sensor: E-Movement XOD installation’s signature safety feature. The motor cut-off sensor immediately disconnects the motor so that it does not resist the braking action when pulling the brake lever. This means shorter stopping distances, less wear on the motor and a significant increase in rider safety on UK roads.
Performance of the XOD Hydraulic Brake in the UK Conditions
The XOD system is the choice of UK riders for consistent braking performance across the full range of British riding conditions. The XOD hydraulic brake in the UK gives you consistent stopping power and precise control every time, whether riding on dry summer roads or through rain, mud and cold winter weather. Performing the same in wet conditions where cable-actuated systems notoriously lose modulation and feel as cable housing fills with moisture, the sealed XOD system. There is no loss of power, no degradation, no sponginess.
The caliper’s aluminum alloy construction actively dissipates heat during extended periods of braking, preventing brake fade on long descents. This is particularly true for UK riders in hilly terrain such as Wales, Peak District or Scottish Highlands where extended downhill braking on an E-bike loaded with motor and battery weight creates a lot of thermal load that inferior systems just can't handle safely
Fitting, Maintenance and Care of Your XOD Brake System in the UK
One of the most practical benefits of the XOD hydraulic brake in the UK set is that it comes pre-filled, so the hydraulic system is ready to go right out of the box without the need to immediately bleed. The full installation kit includes left and right brake levers, pre-filled hydraulic hoses at the correct lengths and full caliper assembly, everything you need to ensure a smooth setup with no extras.
At E-Movement we recommend the following maintenance routine to keep your XOD system performing at its best over the British riding season. Check brake pad thickness regularly and replace when pads have worn beyond 1.5mm. Clean rotors with isopropyl alcohol to degrease and remove road grime and contamination that can cause squealing or reduce braking efficiency. Every 500 miles or so, inspect all hose connections for fluid seepage and caliper bolts for tightness. XOD hydraulic system, use mineral oil only, never DOT fluid. And perform the gradual stop bed-in procedure of 20 to 30 stops on any new set of brake pads before riding at full speed.
E-Movement’s complete electric bike brake set is available to UK riders for £49.99 and comes in left/rear, right/front or front and rear combo options so every rider has the flexibility to replace one side or upgrade the whole braking system in one go.
Upgrade Your Braking with E-Movement Today
On any E-bike, the most safety-critical system is the braking, and the rider who takes this seriously rides with a confidence that no amount of speed or suspension can match. If you want to upgrade your current bike or want your next E-Movement purchase kitted out with the best stopping system in the UK, the XOD disc brake set is available now and ready to ship across Britain.
Shop Online: www.E-Movement.co.uk
Visit Our Showroom: 12 Broadway, Woking, GU21 5AP. Open Monday to Saturday, 10:00am to 6:00pm https://maps.app.goo.gl/uGGAQ5zqK2KvBX376
Call Us: 01483 363063 | move@emovement.co.uk
Frequently Asked Questions
1. How do hydraulic and mechanical disc brakes on E-bikes differ in the UK?
Cable actuated mechanical disc brakes require periodic adjustment. Hydraulic brakes with sealed fluid for more powerful and smoother braking, and less maintenance.
2. Why does the motor turn off when I hit the brakes on my E-Movement bike?
This is a safety feature by design. The E-Movement bikes feature a motor cut-off sensor which instantly cuts off motor assistance when braking, providing greater control and shorter stopping distances.
3. Can I fit the XOD hydraulic brake myself in UK conditions?
Yes. The XOD hydraulic brake comes pre-filled and ready to install, making it easy for riders with a basic understanding of bike maintenance to fit.
4. What size rotors can I use with the XOD system in the UK?
The XOD system is compatible with 140mm and 160mm front rotors and 160mm and 180mm rear rotors, meaning it will work with most E-bikes in the UK.
5. How do I look after my XOD hydraulic brake in the UK’s weather conditions?
Clean rotors, regularly check pad wear and use mineral oil as needed. The sealed system is reliable in UK weather conditions.
