Not sure whether you should be setting your XOD brakes as left rear/right front or left front/right rear? You’re not the only one. Selecting the right setup for your brake levers is one of the important factors in installing or upgrading your braking system, since it impacts how naturally you react when stopping suddenly.
For UK electric-bike riders, the choice becomes even more important. It needs to work with your current muscle memory, experience, and your natural reaction to any surprises on the road.The right configuration makes it easy for the rider to stop and react quickly.
Let's explore the different XOD brakes configurations, understand which setup best suits your riding style, and discover the features that make the E-Movement XOD E-Bike Hydraulic Disc Brake Set ideal for UK e-bike riders
Why Choosing the Right XOD Brakes Configuration Matters on UK Roads
It is important to choose the right XOD hydraulic brake configuration on UK roads due to several reasons, such as ensuring safe braking with the right feel of the levers and safety during British weather and traffic conditions. Key benefits include:
-
Weather and Terrain Adaptation: The roads of the UK experience lots of rainfall, mud, and cold conditions. The sealed hydraulic system does not allow moisture accumulation as opposed to cable-operated brakes.
-
E-Bike and Heavy Load Demands: Electric bikes carry extra weight and travel at higher speeds. Correctly configured XOD brakes including H, D, or E series handle high heat resistance and prevent brake fade on descents.
-
Fitment Precision: Choosing the right XOD brakes setup will guarantee proper hose placement, correct caliper orientation, and a secure installation for consistent brake performance
-
Riding Comfort and Safety:Choosing the XOD hydraulic brakes that best match the desired brake position on either the right or the left side gives better responsiveness and control, thus reducing hand fatigue while cycling in the UK.
Which XOD Brakes Configuration Is Right for You?
The XOD Hydraulic Disc Brake Set caters to different riding experiences by giving UK riders the option to select their preferred lever set-up to match their muscle memory for better braking. The purpose is not to determine which of the two is superior but rather to ensure that the rider selects what they feel comfortable using.
Right-Front / Left-Rear (Traditional UK Setup)
In this XOD brakes setup, the right lever operates the front brake, whereas the left lever operates the rear brake. This is the standard configuration for complete bicycles supplied in the UK, making it the layout most riders are already familiar with. This setup is also referred to as moto-style braking since it is similar to the braking system used in motorcycles.
This setup is best suited for cyclists who have learned how to ride in UK bikes or have adopted this particular braking setup. It is easier for many cyclists to use the front brake, which is more effective, using the right hand.
Left-Front / Right-Rear (International Setup)
For this XOD brakes setup, the left lever operates the front brake and the right lever operates the rear brake. This type of configuration is frequently used as the standard manufacturing configuration for bicycles being sold in various international markets. It is usually linked with cycling practices wherein the rider uses his/her right hand for signaling purposes, and the left lever for operating the front brake.
This system works well for those who have cycled outside of the UK or have been cycling on imported bikes for many years with the same style of brake lever. Keeping a familiar setup allows your muscle memory to remain consistent, helping you brake more naturally and confidently.
How to Configure Your XOD Brakes for UK Riding
Configuring your XOD hydraulic disc brakes correctly helps ensure safe, predictable braking and allows you to ride with confidence. Once you've chosen the brake lever configuration that suits you best, follow these simple steps to set up your XOD brakes for safe and confident riding in the UK.
Step 1: Check Your Current Brake Lever Setup
The first step is to check which brake is operated by each brake lever. You can do this by pressing both brakes and turning each wheel to check if the left brake operates the front wheel or the back wheel.
Step 2: Choose Your Preferred Configuration
In the UK, the default configuration is the right brake lever operating the front wheel brake and the left brake lever operating the rear wheel brake. Having many years of experience using the international system might benefit you by maintaining your muscle memory.
Step 3: Install the Brake Levers Correctly
Mount the brake levers on the front and the rear side based on the configuration that you have selected. It should be ensured that both brake levers are fastened securely to the handlebar and mounted at an angle convenient for access during ride.
Step 4: Route the Hydraulic Hoses Properly
Make sure the hydraulic hoses are not kinked, twisted, or in the way of moving components. Good hose routing is important for proper braking and for minimizing any undue wear on the brake system
Step 5: Test Your Brakes Before Riding
Prior to riding your bike, test your front and rear brakes in a safe place. Ensure that your brakes perform properly, the levers are stiff, and the bicycle stops without noise or dragging.
Configuration Tips After Installation
After installing your XOD brakes, carry out a few final checks to ensure everything is working as intended:
-
Check the brakes for low-speed operation in a safe area prior to riding on the road.
-
Ensure the front and back brake levers operate the appropriate wheels.
-
Fine-tune the lever reach so that you can comfortably hold the levers and naturally apply the brakes.
-
Make sure the brake discs are well-aligned and the brake calipers don't touch the discs.
-
If you have altered the brake line configuration, you should bleed the brake system to remove any trapped air and restore consistent braking performance.
Why Choose E-Movement XOD Brakes?

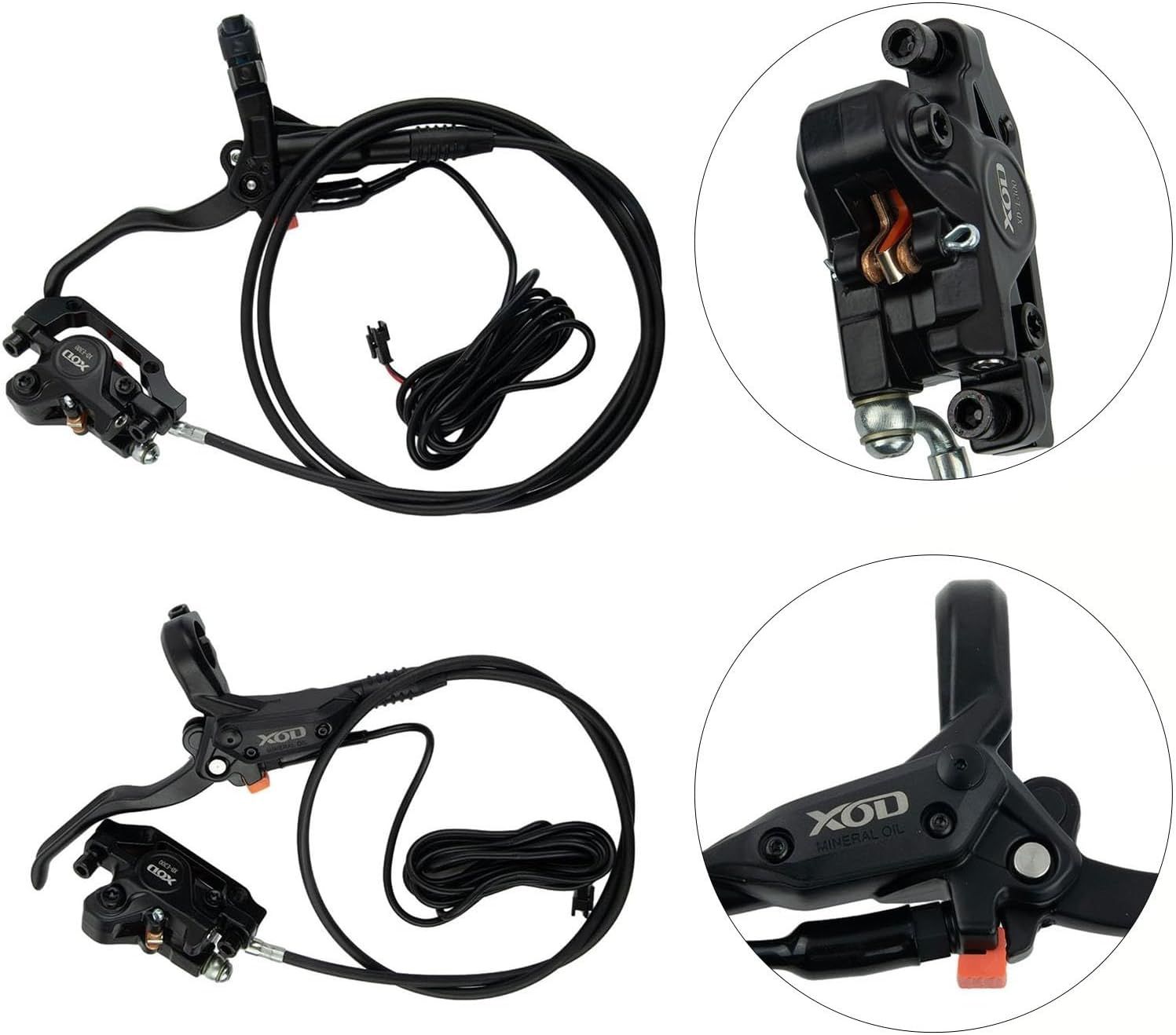

Once you've chosen the brake lever configuration that best matches your riding style, the next thing to consider would be a braking system which can offer you good performance during normal rides. The XOD E-Bike Hydraulic Disc Brake Set by E-Movement UK is made exclusively for e-bikes offering a range of brake sets along with hydraulic braking performance. Let's find out what is included in the kit and how each feature enhances your riding experience.
1. Complete Installation Kit
This kit provides all that is required for easy installation. It has precise left and right brake levers, 850mm front and 1550mm rear housing lengths, 180mm electric cables, and can be used with brake discs of 140mm or 160mm on the front side and 160mm or 180mm on the rear side of a 44mm hole size.
2. Custom Braking Configuration
Unlike the traditional brakes, with the XOD Brake Set, one can have either left rear/right front or left front/right rear setup. The option gives cyclists an opportunity to retain their current muscle memory, thus making the braking process easier and confident.
3. Effortless Installation and Adjustment
This brake kit is made using high-quality aluminium alloy that ensures lightness and longevity of the product. Adjustable levers make it possible for you to adjust the lever reach and braking power according to your convenience.
4. Safety and Control
The hydraulic brake system ensures a smooth and consistent braking performance with good modulation. It enhances the accuracy of braking and minimizes hand fatigue when commuting on steep descents and repeated stops.
5. Professional-Grade Performance
Designed specifically for use in electric bicycles, the best E-Movement XOD Hydraulic Disc Brake System UK delivers the required braking power to deal with the extra weight and speed of electric bikes.
Frequently Asked Questions
Which brake configuration is standard in the UK?
Right-front/left-rear is the standard brake configuration which is required for all complete and assembled bicycles that will be used on roads in the United Kingdom.
Can I switch my brake configuration after installation?
Yes, the hydraulic lines in XOD can be switched around at a later stage by an experienced technician, who would need to detach the hydraulic lines and perform a bleed procedure to avoid air bubbles.
Why do wet UK roads increase the risk of over-the-bars accidents?
Low traction of tyres on wet roads makes front wheel lock-up possible without as much warning compared to dry roads. The proper orientation of the levers helps prevent you from pulling too much on the front brake due to natural instincts.
Does international style braking (left-front) work on UK roads?
Yes, but only when it corresponds to your motor skills training. If you have been riding with continental European or US default setup, it is better to keep it as your configuration.
Upgrade Your E-Bike with XOD Brakes Today
The choice of brake lever alignment is not a small one; it determines how confidently you ride every single day, taking into account the unpredictable nature of UK weather conditions. Be it the moto-style brake system or the classic UK braking style, the E-Movement UK professional technicians are always ready to assist you with setting up your best XOD hydraulic brakes properly right from the start. Get in touch with us now for consultation on your riding experience and setup of your brakes to suit your habits, or contact us to arrange a professional installation in our workshop.
